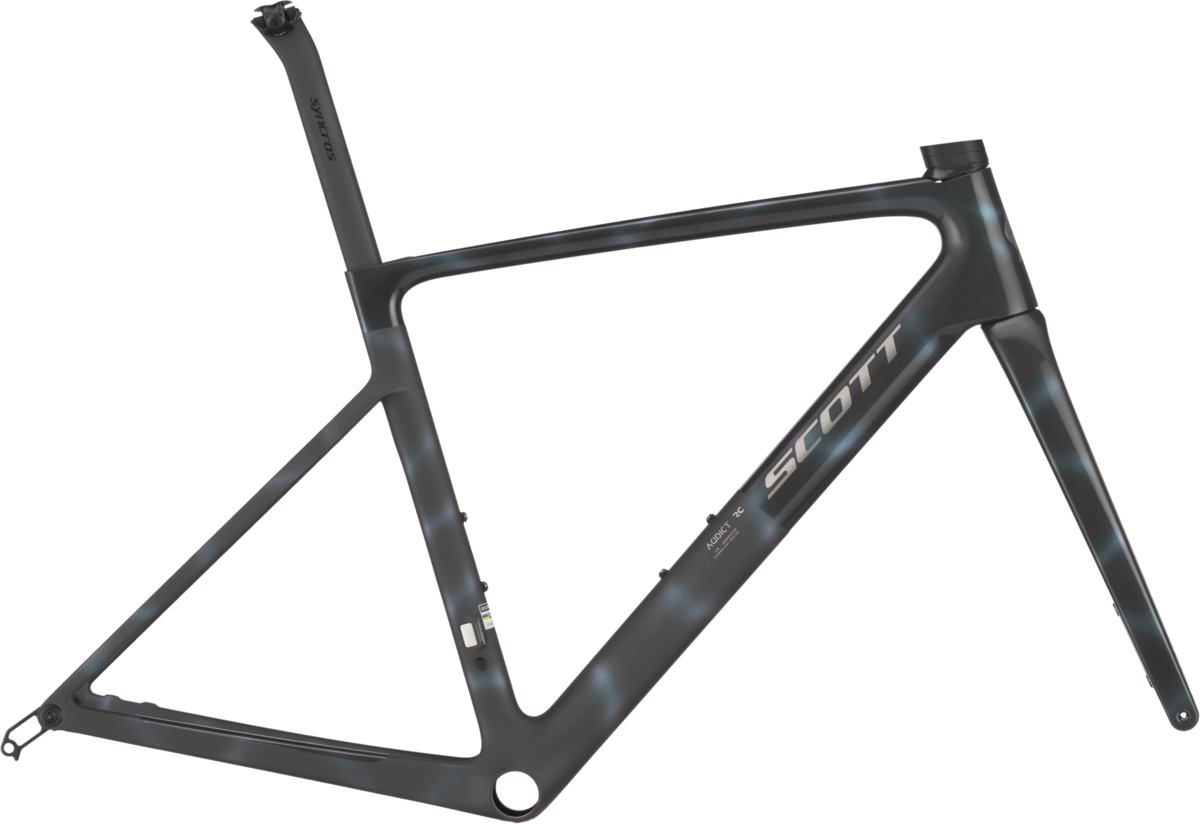

Scott Addict RC Ultimate HMX SL Frame Set
$4,999.99
Details
Engineered to defy gravity and elevate your performance, the all-new Addict RC is our lightest production race bike ever. Whether you're attacking steep climbs or sprinting for the finish line, every aspect of this bike was meticulously crafted with one thing in mind – leaving everyone else in the dust.

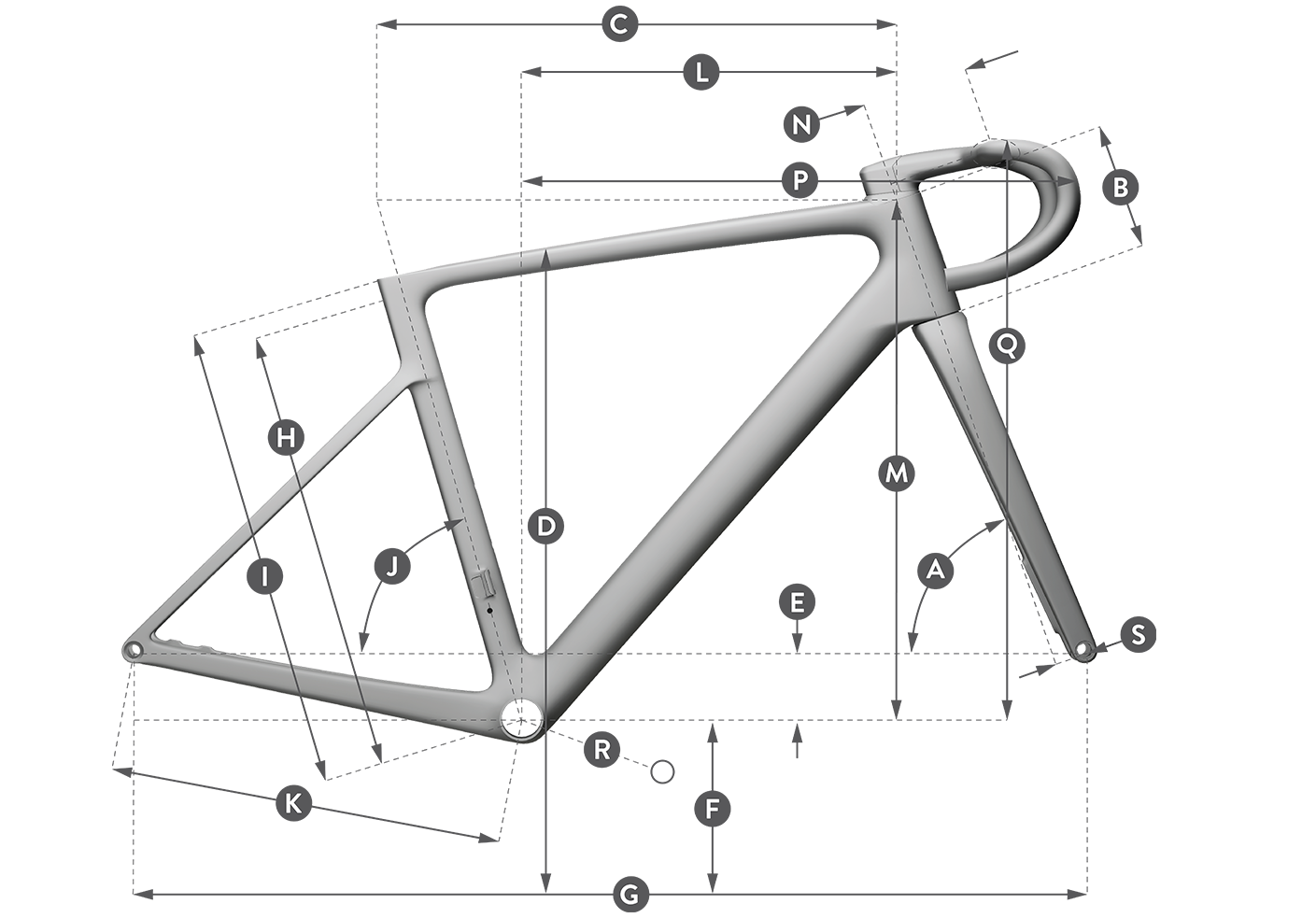

| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | ||
|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 71.3 ° | 71.8 ° | 72.3 ° | 72.8 ° | 73.4 ° | 73.6 ° | 73.8 ° |
| B | head tube length | 90.0 mm | 100.0 mm | 113.0 mm | 130.0 mm | 150.0 mm | 170.0 mm | 190.0 mm |
| C | top tube horizontal | 519.0 mm | 528.0 mm | 542.0 mm | 555.0 mm | 572.0 mm | 586.0 mm | 602.0 mm |
| D | standover height | 725.0 mm | 740.0 mm | 758.0 mm | 778.0 mm | 799.0 mm | 820.0 mm | 840.0 mm |
| E | BB offset | -74.0 mm | -74.0 mm | -73.0 mm | -72.0 mm | -72.0 mm | -72.0 mm | -72.0 mm |
| F | BB height | 270.5 mm | 270.5 mm | 271.5 mm | 272.5 mm | 272.5 mm | 272.5 mm | 272.5 mm |
| G | wheel base | 977.0 mm | 983.2 mm | 988.8 mm | 990.8 mm | 999.0 mm | 1,006.4 mm | 1,015.4 mm |
| H | BB center to toptube center | 412.5 mm | 432.5 mm | 452.1 mm | 472.0 mm | 492.2 mm | 512.3 mm | 532.4 mm |
| I | BB center to top of seattube | 422.5 mm | 442.5 mm | 462.1 mm | 482.0 mm | 502.2 mm | 522.3 mm | 542.4 mm |
| J | seat angle | 74.5 ° | 74.5 ° | 74.0 ° | 73.6 ° | 73.3 ° | 72.8 ° | 72.5 ° |
| K | chainstay | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm |
| L | reach | 379.4 mm | 386.3 mm | 391.6 mm | 395.2 mm | 402.6 mm | 406.1 mm | 411.3 mm |
| M | stack | 501.3 mm | 512.5 mm | 525.5 mm | 543.3 mm | 564.5 mm | 584.3 mm | 604.2 mm |
| N | stem length | 80.0 mm | 90.0 mm | 100.0 mm | 110.0 mm | 110.0 mm | 120.0 mm | 120.0 mm |
| O | handlebar width | 360.0 mm | 380.0 mm | 380.0 mm | 400.0 mm | 400.0 mm | 400.0 mm | 420.0 mm |
| P | cockpit reach | 530.0 mm | 547.0 mm | 563.0 mm | 577.0 mm | 585.0 mm | 599.0 mm | 604.0 mm |
| Q | cockpit min. stack | 562.0 mm | 573.0 mm | 586.0 mm | 604.0 mm | 623.0 mm | 643.0 mm | 662.0 mm |
| R | crank arm length | 165.0 mm | 165.0 mm | 170.0 mm | 172.5 mm | 172.5 mm | 175.0 mm | 175.0 mm |
| S | fork offset | 47.0 mm | 47.0 mm | 47.0 mm | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
| Body Height (CM) | Body Height (IN) | Addict Frame Size | Contessa Addict Frame Size |
|---|---|---|---|
| < 165 cm | < 65 in | XXS | XS |
| 165 - 175 cm | 65 - 69 in | S | S |
| 175 - 185 cm | 69 - 73 in | M | M |
| 185 - 195 cm | 73 - 77 in | L | XL |
| > 195 cm | > 77 in | XL | XXL |
Specs
| Frame | HMX SL Carbon Disc Mainframe compatible for eletr. Shifting |
|---|---|
| Fork | HMX SL Carbon fork for Disc Brake |
| Axles | Syncros SL ROAD thru axle |
| Headset | ACROS AIF-1317S Headset |
| Seatpost | Syncros SP-R100-SL Carbon seatpost |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Sunbeam Black / XX-Small / 700c | 07616185221784 | 4232628096002 |
| Sunbeam Black / X-Small / 700c | 07616185221791 | 4232628096004 |
| Sunbeam Black / Small / 700c | 07616185221807 | 4232628096006 |
| Sunbeam Black / Medium / 700c | 07616185221814 | 4232628096008 |
| Sunbeam Black / Large / 700c | 07616185221821 | 4232628096010 |
| Sunbeam Black / X-Large / 700c | 07616185221838 | 4232628096012 |
| Sunbeam Black / XX-Large / 700c | 07616185221845 | 4232628096014 |
