Scott Addict 40

Scott Addict 40

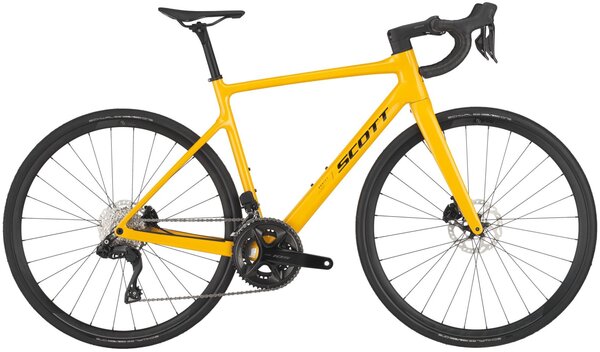

  • Color: Bahama Yellow
  • Color: Champion Black
  • Color: Iceberg Green
$3,199.99
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The SCOTT Addict 40 was designed from the ground up with those longer days in mind. With geometry that is less focused on racing and more on enduring, this bike is yearning to eat up some miles!

Key Features
- Addict HMF Carbon Fork
- Addict HMF Carbon Frame
- Shimano 105 Di2 Disc 24-Speed
- Syncros RP2.0 Disc
- Schwalbe ONE Tires
- Syncros Carbon/alloy Parts

Frame SizeXXS/47XS/49S/52M/54L/56XL/58XXL/61
Head Tube Angle (degrees) 70.5 71 72 72.5 73 73.3 73.3
Head Tube Length (mm/in) 95.0 / 3.7 105.0 / 4.1 125.0 / 4.9 145.0 / 5.7 165.0 / 6.5 185.0 / 7.3 205.0 / 8.1
Top Tube Horizontal (mm/in) 515.0 / 20.3 525.0 / 20.7 540.0 / 21.3 555.0 / 21.9 570.0 / 22.4 585.0 / 23.0 600.0 / 23.6
Standover Height (mm/in) 732.0 / 28.8 747.0 / 29.4 775.0 / 30.5 790.0 / 31.1 812.0 / 32.0 835.0 / 32.9 848.0 / 33.4
Bottom Bracket Offset (mm/in) -70.0 / -2.8 -70.0 / -2.8 -70.0 / -2.8 -70.0 / -2.8 -70.0 / -2.8 -70.0 / -2.8 -70.0 / -2.8
Bottom Bracket Height (mm/in) 275.3 / 10.8 275.3 / 10.8 275.3 / 10.8 275.3 / 10.8 275.3 / 10.8 275.3 / 10.8 275.3 / 10.8
Wheelbase (mm/in) 996.7 / 39.2 1,003.0 / 39.5 1,005.0 / 39.6 1,010.6 / 39.8 1,015.4 / 40.0 1,022.8 / 40.3 1,036.5 / 40.8
BB Center to Top Tube Center (mm/in) 415.0 / 16.3 435.0 / 17.1 465.0 / 18.3 485.0 / 19.1 505.0 / 19.9 525.0 / 20.7 540.0 / 21.3
BB Center to Top of Seat Tube (mm/in) 455.0 / 17.9 475.0 / 18.7 505.0 / 19.9 525.0 / 20.7 545.0 / 21.5 565.0 / 22.2 580.0 / 22.8
Seat Tube Angle (degrees) 75 75 74.5 74 73.5 73.1 73
Chainstay Length (mm/in) 420.0 / 16.5 420.0 / 16.5 420.0 / 16.5 420.0 / 16.5 420.0 / 16.5 420.0 / 16.5 420.0 / 16.5
Reach (mm/in) 376.3 / 14.8 383.2 / 15.1 387.0 / 15.2 390.9 / 15.4 394.3 / 15.5 398.6 / 15.7 406.6 / 16.0
Stack (mm/in) 517.8 / 20.4 529.1 / 20.8 551.6 / 21.7 572.4 / 22.5 593.3 / 23.4 613.6 / 24.2 632.7 / 24.9
Stem Length (mm/in) 83.0 / 3.3 93.0 / 3.7 103.0 / 4.1 113.0 / 4.4 113.0 / 4.4 123.0 / 4.8 123.0 / 4.8
Frame SizeBody Height (cm)Body Height (in)
XXS / XS / S < 165 < 65
XS / S / M 165 - 175 65 - 69
M / L 175 - 185 69 - 73
L / XL / XXL 185 - 195 73 - 77
XL / XXL > 195 > 77

Specs

Frame Addict HMF Carbon Endurance geometry / Replaceable Derailleur Hanger Internal cable routing Syncros fender kit ready
Fork Addict HMF 1 1/4"-1 1/2" Eccentric Carbon steerer
Wheels Syncros RP2.0 Disc 28 Front / 28 Rear Syncros Axle / Removable Lever with Tool
Tires Schwalbe ONE Fold 700x32C
Bottom Bracket Shimano BB-RS500-PB
Crankset Shimano 105 FC-R7100 Hollowtech II 50x34
Shifters Shimano 105 Di2 FD-R7150 Dual control 24 Speed Electronic Shift System
Front Derailleur Shimano 105 Di2 FD-R7150 Electronic Shift System
Rear Derailleur Shimano 105 Di2 RD-R7150 24 Speed Electronic Shift System
Cassette/Freewheel Shimano CS-R7101 11-34
Chain Shimano CN-M6100-12
Brakes Shimano BR-R7170 Hyd.Disc
Rotors Shimano SM-RT70 CL rotor 160/F and 160/R
Handlebars Syncros Creston 2.0 Compact Alloy 31.8mm
Stem Syncros RR2.0 1 1/4" / four Bolt 31.8mm
Headset Acros AIF-1134
Seatpost Syncros Duncan 1.0 27.2/350mm
Saddle Syncros Tofino Regular 2.0 Channel

* Subject to change without notice.

Part Numbers

Option UPC MPN
Bahama Yellow / XX-Small / 700c 07616185209911 4233848098002
Bahama Yellow / X-Small / 700c 07616185209928 4233848098004
Bahama Yellow / Small / 700c 07616185209935 4233848098006
Bahama Yellow / Medium / 700c 07616185209942 4233848098008
Bahama Yellow / Large / 700c 07616185209959 4233848098010
Bahama Yellow / X-Large / 700c 07616185209966 4233848098012
Bahama Yellow / XX-Large / 700c 07616185209973 4233848098014
Champion Black / XX-Small / 700c 07616185209751 4233847965002
Champion Black / X-Small / 700c 07616185209768 4233847965004
Champion Black / Small / 700c 07616185209775 4233847965006
Champion Black / Medium / 700c 07616185209782 4233847965008
Champion Black / Large / 700c 07616185209799 4233847965010
Champion Black / X-Large / 700c 07616185209805 4233847965012
Champion Black / XX-Large / 700c 07616185209812 4233847965014
Iceberg Green / XX-Small / 700c 07616185209836 4233848089002
Iceberg Green / X-Small / 700c 07616185209843 4233848089004
Iceberg Green / Small / 700c 07616185209850 4233848089006
Iceberg Green / Medium / 700c 07616185209867 4233848089008
Iceberg Green / Large / 700c 07616185209874 4233848089010
Iceberg Green / X-Large / 700c 07616185209881 4233848089012
Iceberg Green / XX-Large / 700c 07616185209898 4233848089014
